Linear progress

Overview: Progress indicators​

Progress indicators inform users about the status of ongoing processes, such as loading an app, submitting a form, or saving updates. They communicate an app’s state and indicate available actions, such as whether users can navigate away from the current screen. Use a progress indicator for operations that take more than 1 second.

Progress indicators are used to:

  • Assure the user that the system is working.
  • Provide operational transparency.
  • Communicate progress made vs progress pending.
  • Reduce users perception of time elapsed.

Types of progress indicators​

ContextComponentGuidance
Initial page loadSkeleton + progressive loadingUse skeleton loading when content size/shape is known. Load skeleton components, then fade in components as they become available.
Initial page loadLinear page progressUse when the content to be loaded is of unknown or variable size or quantity. Display a description of the process with a linear progress bar (see pattern below).
Full page load or changeFull page busy indicatorUse an overlay to prevent users from interacting with content on a page due to a change, server error, or form submission.
Multiple componentsSkeleton + progressive loadingLoad skeleton components, then fade in components as they become available.
Single component within a pageInline circular progress spinnerUse a contextual circular progress indicator to communicate that either a component's state or data is changing.

Overview: Linear progress indicator​

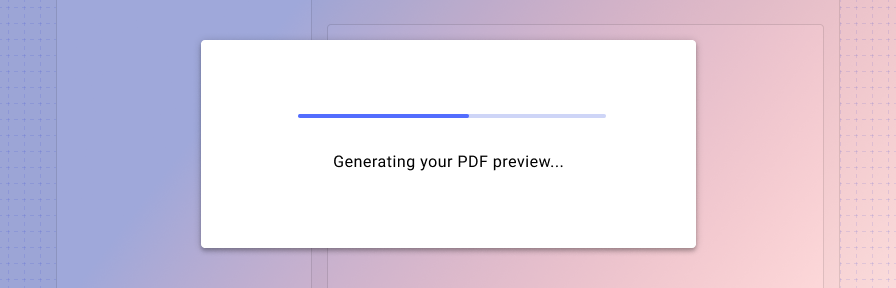

Use a linear progress indicator to communicate that a specific component is loading. Specifically, linear progress indicators may be used at the bottom of text fields, in dropdowns, and in expansion panels.

Use circular progress spinners inside components like list items, buttons, and cards.

When to use: Linear vs circular progress indicators​

Forge offers two visually distinct types of progress indicators: linear and circular progress indicators. Only one type should represent each kind of activity in an app. For example, if a refresh action displays a circular indicator on one screen, that same action shouldn’t use a linear indicator elsewhere in the app.Researchers Gronier and Lallemend conducted an experiment to determine what the best metaphor to display during waiting time is. They measured a number of components (progress bar, countdown, text, etc) against perceived waiting time and satisfaction. They found that while a countdown yields the highest satisfaction level because it informs the user exactly how long they have to wait, linear progress bars were actually associated with the shortest perceived waiting time and a high satisfaction score (5.8 out of 7). Read more. For this reason, we recommend a heavier use of linear progress indicators.

Because circular progress indicators fit better inside components, use them to communicate the state of a component or its data is changing. Use circular progress indicators for inline components; use linear progress indicators for other scenarios.

Types​

There are two types of linear progress indicators: determinate and indeterminate.

Determinate indicators display how long a process will take. They should be used when the process completion rate can be detected.

Determinate progress indicators fill from 0% to 100%.

Indeterminate progress indicators move along a fixed track, growing and shrinking in size.

Best practices​

check_circle_outline

Only show a progress indicator if the expected wait time is more than a second; for example, whenever making a request to the server.

check_circle_outline

Use animations to soften transitions between states. Motion focuses attention on what's important without creating unnecessary distraction. Check out the Material guidance on motion.

Components​

  • Use skeleton loading when content size/shape is known.
  • Use a busy indicator to to prevent users from interacting with content on a page due to a change, server error, or form submission.
  • Use a circular progress spinner inside a component to communicate that either a component's state or data is changing.

Patterns​

Resources​
